उत्पाद विवरण:
|
| गारंटी: | 1 वर्ष | वज़न: | 3000 किलो |
|---|---|---|---|
| आयाम (l*w*h): | 2700*2150*2600 | स्थिति: | नया |
| प्रकार: | खड़ा | बिक्री के बाद सेवा प्रदान की: | विदेशों में सेवा मशीनरी के लिए उपलब्ध इंजीनियर, ऑनलाइन समर्थन |
| वोल्टेज: | 380V 50HZ, ग्राहक की आवश्यकता | शक्ति (डब्ल्यू): | 5.5 kw |
| मशीन प्रकार: | चीन निर्माता मशीनिंग केंद्र सीएनसी ऊर्ध्वाधर प्रक्रिया केंद्र | धुरा: | ताइवान 10000rpm तकला |

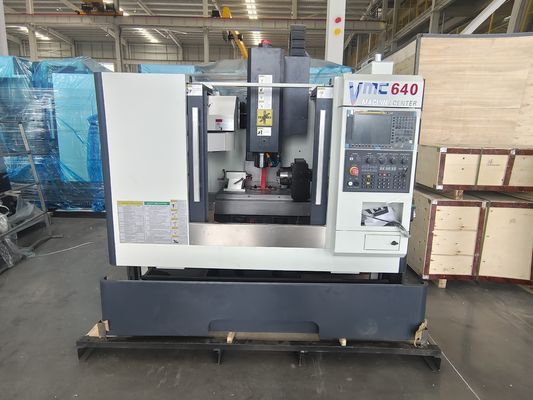

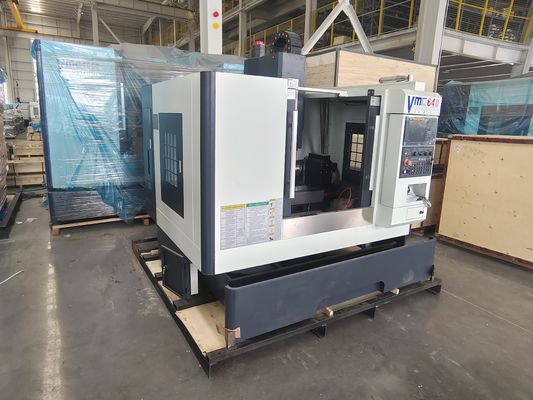

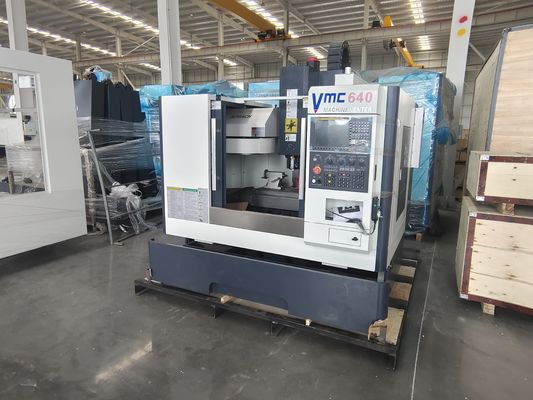

| स्पिंडल टेपर: | BT40 | प्रोडक्ट का नाम: | छोटे धातु मोल्ड प्रसंस्करण सीएनसी ऊर्ध्वाधर मशीनिंग केंद्र VMC640L |
| गाइडवे: | एक्स, वाई रैखिक दिशानिर्देश | रंग: | पसंद के अनुसार निर्मित |
| प्रमुखता देना: | 10000rpm spindle CNC Vertical Machining Center,16 ATC tool magazine VMC640 CNC Milling Machine,±0.005mm precision Vertical Machining Center |
||
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
| Specifications | VMC640 | ||
| Work table | Area of work table | 800×300mm | |
| Load capacity | 400 kg | ||
| spindle | Motor power | 5.5kw | |
| Distance between the spindle end and the work surface | 120-670 mm | ||
| Spindle center to column guide rail | 460 mm | ||
| Speed | 12000rpm | ||
| Taper of spindle | BT40 | ||
| Distance of travel | X-Axis | 600 mm | |
| Y-Axis | 400mm | ||
| Z-Axis | 450mm | ||
| Feed | X/Y/Z-axis fast moving | 24/24/18mm(linear guide way) | |
| fast cutting speed mm /min | 1-10000 mm/min | ||
| precision | Positional accuracy | ±0.01 mm | |
| Repeat positional accuracy | ±0.005 mm | ||
| Tools | Tool changer type | 16 ATC tool magazine | |
| Max. tool length | 300mm | ||
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | ||
| Max.tool weight | 8kg | ||
| Tool changing time(tool-to-tool) | 7sec | ||
| Data | Air pressure | 0.6 Mpa | |
| Power Supply | Voltage(V)/frequency (Hz) | 220v three-phase voltage | |
| Total capacity(KVA) | 10 | ||
| Weight | 3000 kg | ||
| Diamention | 2280×2150×2250mm | ||
