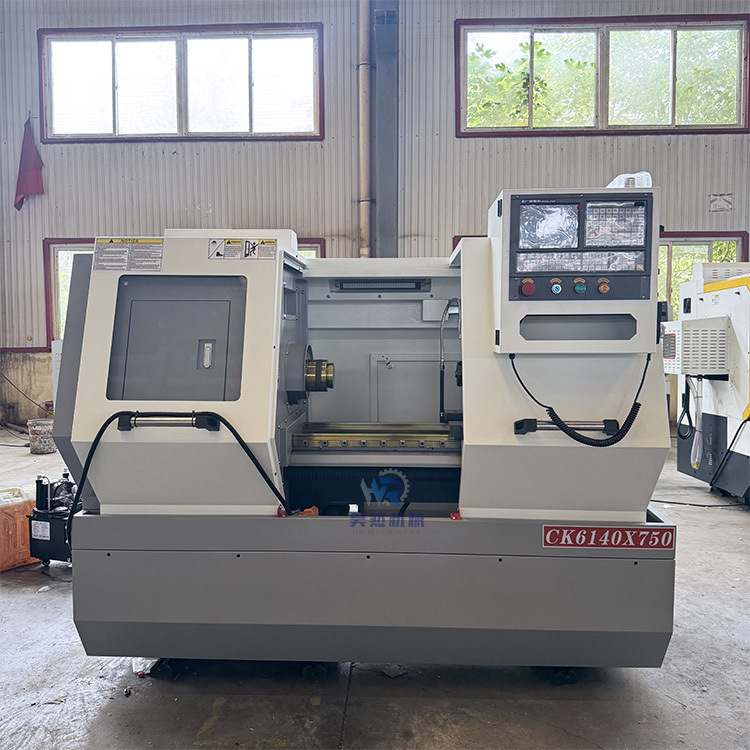

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

बड़ी छवि :  CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

उत्पाद विवरण:
उत्पत्ति के प्लेस: शैंडोंग, चीन
ब्रांड नाम: HR
प्रमाणन: CE
मॉडल संख्या: CK6140
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: $9130 1set
पैकेजिंग विवरण: लकड़ी का केस
प्रसव के समय: 30 दिन
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 40 सेट महीने
संपर्क करें

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

वर्णन
वोल्टेज: 3 चरण 380V 50Hz स्वत: ग्रेड: स्वत:
शक्ति (डब्ल्यू): 7.5kW स्थिति: नया
अधिकतम। झूला व्यास: 400 मिमी वज़न: 1650/1700 किग्रा
सीएनसी या नहीं: सीएनसी प्रकार: क्षैतिज
बिक्री के बाद सेवा प्रदान की: ऑनलाइन समर्थन गारंटी: 1 वर्ष
स्पिंडल बोर: 60 मिमी स्पिंडल की गति: 150-2500 आरपीएम
रंग: चुनने के लिए स्वतंत्र हो सकते हैं Max. मैक्स। Spindle Speed (rpm) तकला गति (आरपीएम): 2500 आरपीएम
प्रोडक्ट का नाम: सीएनसी लेथ मशीन CK6140 क्षैतिज धातु काटने की मशीन वर्ष: नया
नियंत्रण प्रणाली: सीमेंस जीएसके फैनुक (वैकल्पिक) मशीन प्रकार: फ्लैट बेड लात,CK6140 उच्च गुणवत्ता चीन फ्लैट बेड सीएनसी लात मशीन मूल्य
प्रमुखता देना:

small benchtop CNC lathe machine

,

horizontal CNC turning machine

,

CK6140 CNC lathe machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
Product Description

  •






    •
    •

    •
  • CNC Lathe Features

    •

1. Frequency conversion stepless speed regulation.
2.With servo system .
3.Four position elearic turret .
4.Standard configuration: spring chuck and chuck double use.
5.Optional configuration : hydraulic chuck, gang type tool post.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 0
Item
CK6140A
CK6140B
Max. swing dia. over bed
Φ400mm
Φ400mm
Max. swing dia. over cross slide
Φ225mm
Φ245mm
Max. processing length(mm)
750
1000
750
1000
Dia. of spindle hole
Φ60mm
Φ52mm
Spindle speed
150-2500rpm
150~500rpm (low) 320~1600rpm (high)
spindle taper
MT6
Tool holder
4 station electric tool post(optional 6/8staion electric turret)
Tool bar section
20X20
20X20
Main motor power
5.5KW
5.5KW
X/Z axis fast feeding speed
6/8 M/MIN
6/8 M/MIN
X/Z axis position accuracy(mm)
0.01/0.015
0.01/0.015
X/Z-axis repeatability(mm)
0.012/0.013
0.012/0.013
Clamping
3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.
60
60
60
60
Tailstock sleeve travel
120mm
120mm
Tailstock taper
MT4
Dimension
2120X1400X1700
2050x1400x1650
2370X1400X1700
2300X1400X1650
Weight(kg)
1800
1950
1850
2050
Standard configuration:
Optinal configuration:
GSK928 CNC Controller
Siemens,Fanuc cnc controller system
Servo motor for X,Z axis, Servo driven
pneumatic chuck,hydraulic chuck
3 Jaw Manual Chuck
pneumatic tailstock,hydraulic tailstock
4 station electric tool post
6 staion tool turret,8staiton tool turret
Auto lubrication system
Auto feeder system
lighting system
Chip conveyor
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 1
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 2
Details Images
Product Presentation
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 3
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 4
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 5

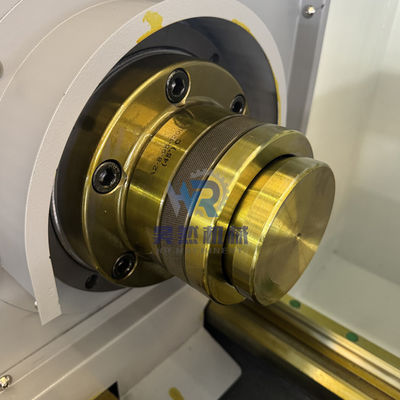

Manual chuck

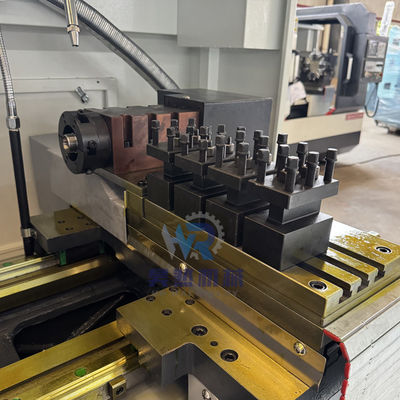

4 Position Electrical Toolpost
